MARCOTTE
HTM2500

One of the most versatile surface drills

  • Insulated walls
  • Robust construction
  • < 12 psi Ground pressure

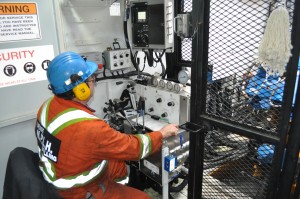

  • User-friendly display
  • Cabin heaters
  • High quality components
  • Hydraulic rod handler

Its reliability and exceptional performance make the MARCOTTE HTM2500 the ultimate Drilling Machine. With its robust mechanical components, the MARCOTTE drill head is designed for easy maintenance.

With its patented safety features and optional Rod Handler, the MARCOTTE HTM2500 is the reference in Canada.

CAPACITY

Engine

Pull

Torque

Max depth

Mast angle

DEPTH RANGES

on BWL

on NWL

on HWL

on PWL

Drilling Unit

10,5 ft

Feed cylinder stroke

2.07 ft/sec

Average feed cylinder speed

4 speeds

Funk transmission

Hoist Wireline

10,000 ft

Storage capacity

4,400 lb max.

Pull capacity

554 ft/min max.

Speed capacity

Power Unit

55 USgal

Fuel tank

100 USgal

Hydraulic tank

Water/Oil

Heat exchange unit

OPTIONS
  • Wider skids for lower ground pressure
  • Casing clamp below the foot clamp
  • Multiple foot clamps compatible with the mast
  • Multiple chucks compatible with the Drill Head
  • Multiple ratios available for hoist wireline
  • Can be supplied with biodegradable oil
  • Air/Oil heat exchanger
  • Custom safety features as required by customer
ACCESSORIES
  • Clamp and chuck synchronization
  • Screw and unscrew function
  • Drill head torque control
  • Feed pressure control
  • Mud mixer
  • Dual control for water pump
  • Water pump supplied by 34 hp of hydraulic power
  • Work lights for interior lighting
  • Storage for up to 150 USgal

Possible Marcotte HTM2500 configurations

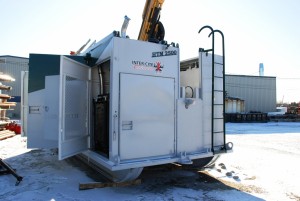

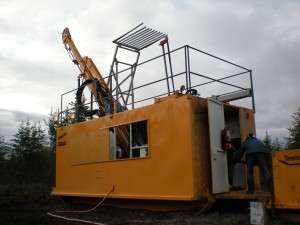

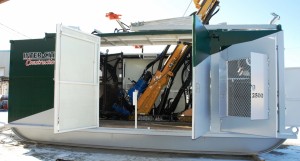

MARCOTTE HTM2500
on skid with cab

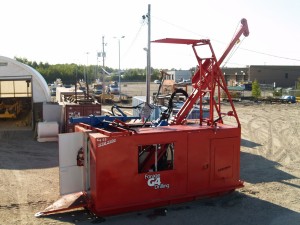

Tracked standard model

MARCOTTE HTM2500
on heavy-duty truck

Contact us to learn more about the versatility of our surface drills.

Marcotte Cyborg

MARCOTTE’s technological answer designed to meet the realities of mining drilling.

The new MARCOTTE CYBORG technology is based on the addition of new automated functions to some of our MARCOTTE drilling rig ranges. A technology that allows you to monitor and optimize your rig’s operations, while increasing the safety of drilling activities.

CYBORG is also a range of accessories that can be added to certain models of MARCOTTE drills already in operation, for greater precision and autonomy.

Contact us to learn more about the new MARCOTTE CYBORG technology.

SAFETY STANDARDS
  • Drilling space protected by a safety barrier (protective grid) meeting safety standards
  • Hydraulic barrier handling system for drill access
  • Automatic lowering of the guardrail for foot detection
  • Drill stops when guard access is opened
  • Sensor detects opening of each access gate
  • Visual alarm on control panel when an access is opened
  • Emergency drill stop button
  • Easy reset after interruption

Download our specification sheet for our MARCOTTE HTM2500 Drill Rig.

SAFETY STANDARDS

  • Drilling space protected by a safety barrier (protective grid) meeting safety standards
  • Hydraulic barrier handling system for drill access
  • Automatic lowering of the guardrail for foot detection
  • Drill stops when guard access is opened
  • Sensor detects opening of each access gate
  • Visual alarm on control panel when an access is opened
  • Emergency drill stop button
  • Easy reset after interruption

Download our specification sheet for our MARCOTTE HTM2500 Drill Rig.
